Xiaomi 17 Pro Max Images 2509FPN0BG
Xiaomi

Xiaomi 17 Pro Max

Last Updated: October 14, 2025

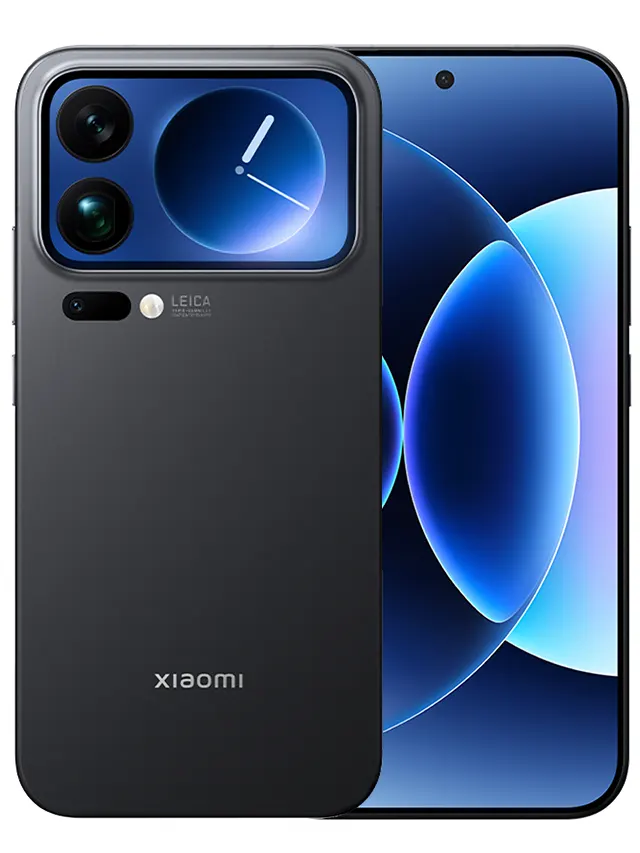

Xiaomi 17 Pro Max 5G 2509FPN0BG 2509FPN0BC
Key Specifications
Display6.9″ + 2.9″ AMOLED
Storage16GB+1TB
Camera50MP+50MP+50MP
ProcessorSnapdragon 8 Elite Gen 5
Battery7500mAh

The Xiaomi 17 Pro Max 5G is a premium flagship smartphone that builds upon the design of the Xiaomi 17 Pro, offering a slightly larger form factor with enhanced display features. It retains the unique dual-screen setup, with the main display upgraded to a 6.9-inch LTPO AMOLED panel and a rear 2.9-inch LTPO AMOLED screen, ideal for quick glances and camera previews. Despite the increase in size, the phone maintains a sleek design while improving usability for multimedia and multitasking.

Under the hood, the 17 Pro Max 5G is powered by the same cutting-edge Qualcomm Snapdragon 8 Elite Gen 5 processor, ensuring top-tier performance and efficiency. It also features the same triple 50MP Leica-branded camera setup as the Pro model, including a powerful telephoto lens with 5x optical zoom for high-quality photography. One of the key upgrades is the massive 7500mAh battery, which supports 100W wired fast charging and 50W wireless fast charging, offering extended usage without compromising on charging speed.

The Xiaomi 17 Pro Max price in KSA, UAE, Qatar, Oman, Kuwait, Bahrain, India, Malaysia, Philippines, UK, USA, Europe, and its full specifications are provided below.

Xiaomi 17 Pro Max Specs (2509FPN0BG, 2509FPN0BC)

Launch
25 September, 2025
Model Number
  • Model Name: Xiaomi 17 Pro Max 5G
  • Model Number: 2509FPN0BC (China), 2509FPN0BG (Global)
  • Series: Xiaomi 17 Series
Network
  • Technology: 2G / 3G / 4G / 5G
  • 2G Bands: GSM B2/ B3/ B5/ B8
  • 3G Bands: WCDMA B1/ B2/ B4/ B5/ B6/ B8/ B19
  • 4G Bands: FDD-LTE B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B17/ B18/ B19/ B20/ B25/ B26/ B28/ B66/ B71 | TDD-LTE B34/ B38/ B39/ B40/ B41/ B42/ B48
  • 5G Bands: n1/ n2/ n3/ n5/ n7/ n8/ n12/ n13/ n18/ n20/ n25/ n26/ n28/ n38/ n40/ n41/ n48/ n66/ n70/ n71/ n77/ n78/ n79/ n80/ n81/ n83/ n84/ n89
SIM
Dual Nano-SIM
Build
  • Dimensions
    • Width: 77.6 mm
    • Height: 162.9 mm
    • Thickness: 8.0 mm
    • Weight: 219 g
  • Body
    • Front: Xiaomi Dragon Crystal Glass 3.0
    • Back: Glass
    • Side: Aluminum Frame
    • Features: IP68 Water and Dust Resistant (up to 6m for 30 min)

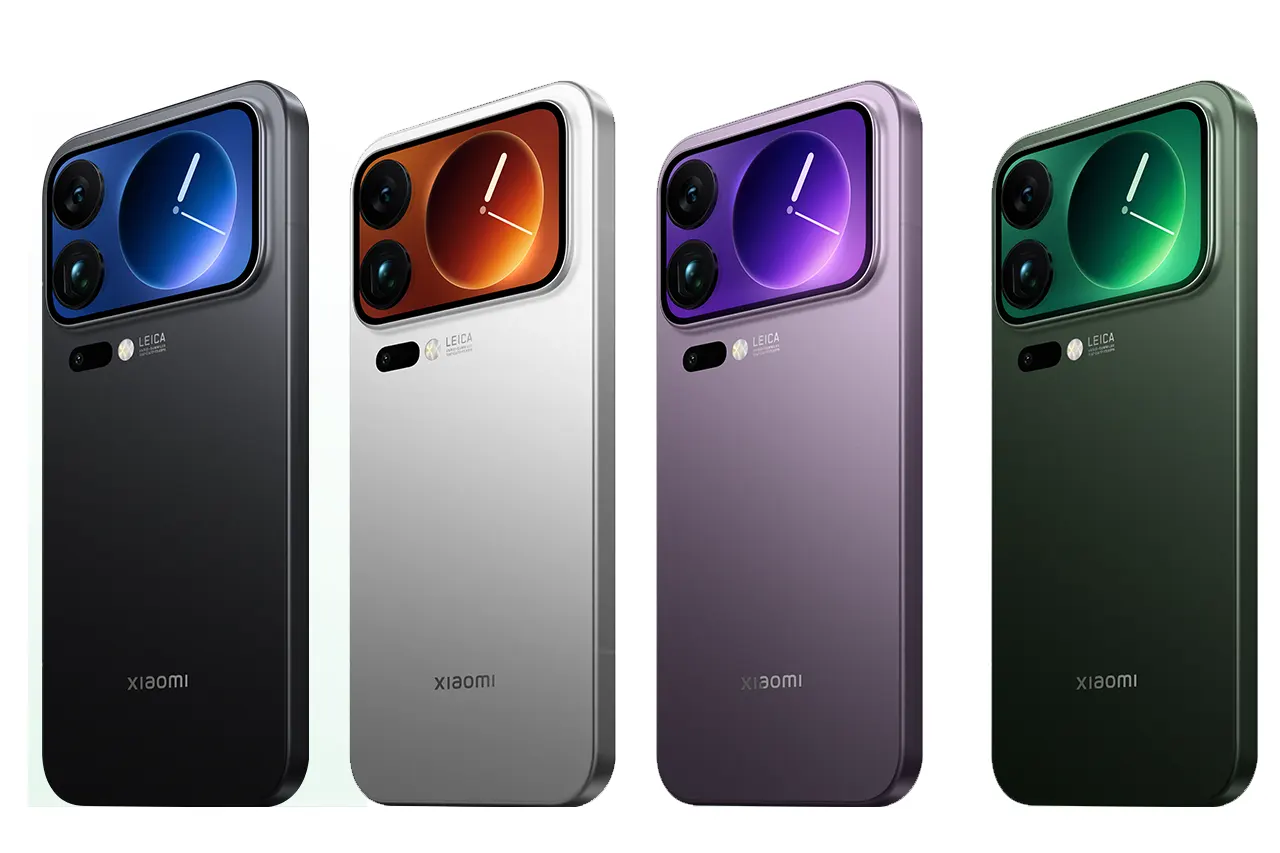

Colors
  • Green
  • Purple
  • Black
  • White
Xiaomi 17 Pro Max Display

Primary Display

  • Size and Type: 6.9-inch 1.5K LTPO AMOLED Flat Display
  • Resolution: 2608 x 1200 pixels
  • Refresh Rate: 1Hz – 120Hz
  • Touch Sampling Rate: 300Hz
  • PWM Dimming: 2160Hz
  • Aspect Ratio: 19.5:9
  • Screen to Body Ratio: 94%
  • Pixel Density: 416 PPI
  • Color Depth: 68 Billion, 12-bit
  • Color Gamut: 100% DCI-P3
  • Brightness: 3500 nits (peak)
  • Protection: Xiaomi Dragon Crystal Glass 3.0
  • Features: Dolby Vision, HDR10+, HDR Vivid, Widevine L1, Always On Display

Secondary Display

  • Size and Type: 2.9-inch LTPO AMOLED Rear Display
  • Resolution: 976 x 596 pixels
  • Refresh Rate: 1Hz – 120Hz (Adaptive)
  • Touch Sampling Rate: 120Hz
  • Brightness: 3500 nits (peak)
  • Protection: Xiaomi Dragon Crystal Glass
Xiaomi 17 Pro Max Processor
  • Operating System: HyperOS 3.0; Based on Android 16
  • Chipset: Qualcomm Snapdragon 8 Elite Gen 5 (5G)
  • CPU Process: 3 nm
  • CPU Core: Octa-core
  • Primary Clock Speed: 4.6 GHz (2 x Oryon V3 Phoenix L)
  • Secondary Clock Speed: 3.62 GHz (6 x Oryon V3 Phoenix M)
  • GPU: Adreno 840
  • Xiaomi 17 Pro Max AnTuTu Score: 3,399,680 (v11)
  • GeekBench 6 Benchmark Score: 3328 (Single-Core Score), 10210 (Multi-Core Score)
  • Wild Life Extreme Stress Test: 6132 (Best Loop Score), 4225 (Lowest Loop Score), 68.9% (Stability)
  • Updates: 4 Years of Android OS Updates and 5 Years of Security Updates
  • Features: Xiaomi IceLoop Cooling System, Game Turbo
Xiaomi 17 Pro Max Camera

Triple Rear Camera

  • 50 MP Leica Main Camera
    • Sensor: Light Fusion 950
    • Sensor Size: 1/1.28″
    • Aperture: ƒ/1.67
    • Pixel Size: 1.22µm
    • Focal Length: 23mm
    • Lens Quantity: 1G+6P
    • OIS & Dual Pixel PDAF
  • 50 MP Leica Periscope Telephoto Camera
    • Sensor Size: 1/2.0″
    • Aperture: ƒ/2.6
    • Focal Length: 115mm
    • Focus Distance: 30cm- ∞
    • 5x Optical Zoom
    • OIS, PDAF
  • 50 MP Leica Ultrawide Camera
    • Sensor: ISOCELL JN1
    • Sensor Size: 1/2.76″
    • Pixel Size: 0.64μm
    • Aperture: ƒ/2.4
    • Focal Length: 17mm
    • Field of View: 102°
    • 5cm Super Macro
    • Auto Focus
Rear Camera Features
  • LED Flash
  • HDR
  • Leica Style
  • Panorama
  • Night Mode
  • Portrait Mode
  • Pro Mode
  • Super Macro
  • Time-Lapse
  • Slow-Motion
  • Video Recording: 8K@30fps, 4K@30/60/120fps, 1080p@30/60fps, 720p@30fps

Front Camera

  • 50 MP In-Display Camera
    • Aperture: ƒ/2.2
    • Focal Length: 21mm
    • Field of View: 90°
    • Auto Focus
Front Camera Features
  • HDR
  • Panorama
  • Portrait Mode
  • Night Mode
  • Time-Lapse
  • Video Recording: 4K@30/60fps, 1080p@30/60fps, 720p@30fps
Storage
  • RAM: 12GB / 16GB
  • RAM Type: LPDDR5X
  • ROM: 512GB / 1TB
  • Storage Type: UFS 4.1
  • Card Slot: Not Supported
  • Features: Extended RAM
Connectivity
  • Cable Type: Type-C USB 3.2 Gen 1
  • Wi-Fi: 802.11 a/b/g/n/5/6/7, 2.4GHz / 5GHz, Wi-Fi Display
  • Bluetooth: 5.4, AAC, APTX HD, LDAC, LHDC 5.0
  • Location: GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC
  • Sound: Dolby Atmos Dual Stereo Speakers
  • Headphone Jack: Type-C
  • NFC: Support
Sensors
  • Ultrasonic In-Display Fingerprint Sensor
  • Face Unlock
  • Proximity Sensor
  • Accelerometer
  • Geomagnetic Sensor
  • Light Sensor
  • Gyroscope
  • X Axis Linear Motor
Xiaomi 17 Pro Max Battery
  • 7500mAh Non-removable Si/C Battery
  • 100W Wired Fast Charging, PD3.0, QC3+, 100W PPS
  • 50W Wireless Fast Charging
  • 22.5W Wireless Reverse Charging
Xiaomi 17 Pro Max Price List

Approximate Selling Price

India₹1,09,999
UAEAED 4,499
KSASAR 4,599
OmanOMR 499
KuwaitKD 399
BahrainBD 499
QatarQAR 4,499
MalaysiaRM 5,199
Philippines₱71,999
Europe€1,249
UK£1,199
USA$1,299

Disclaimer. We can not guarantee that the information on this page is 100% correct
